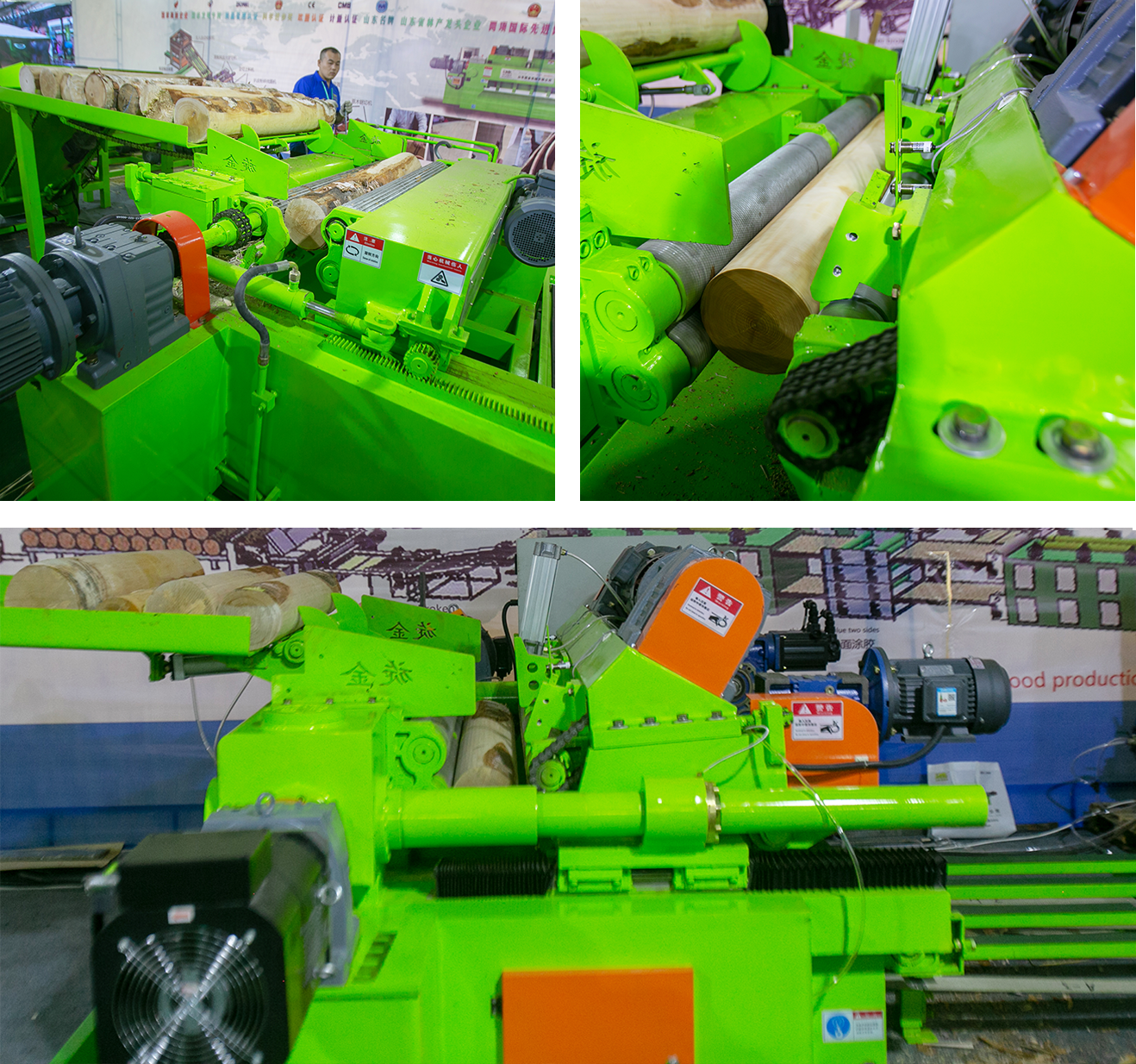

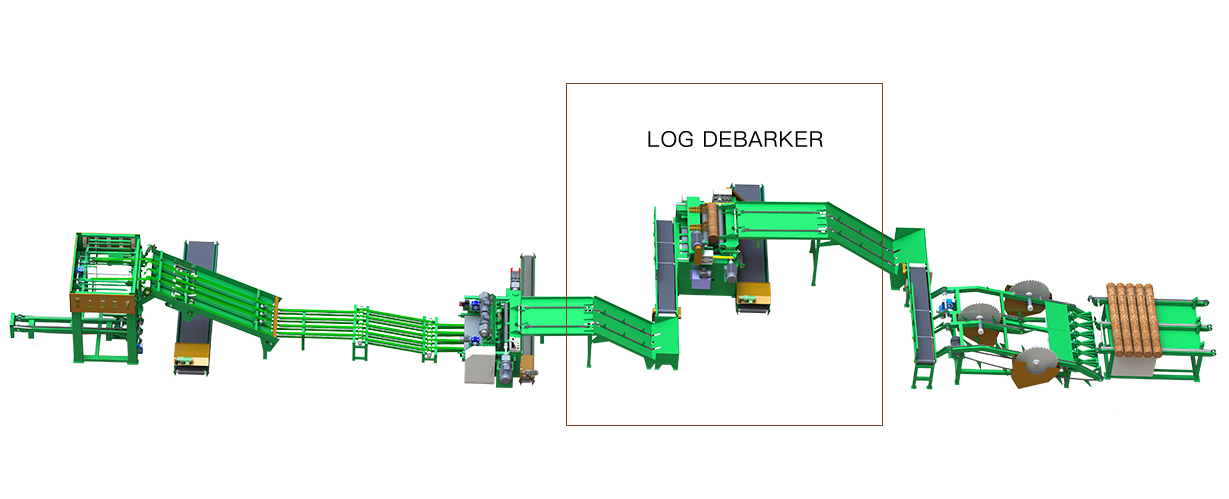

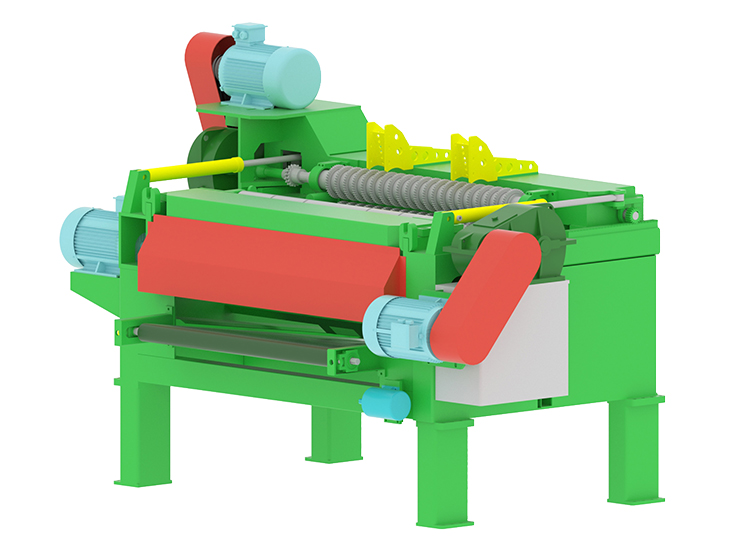

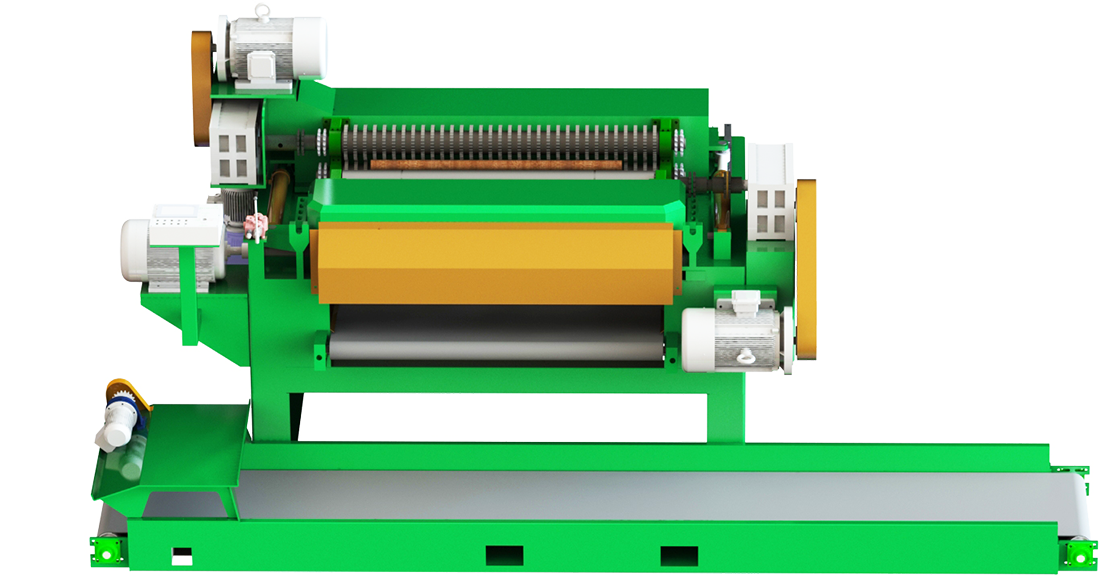

LOG DEBARKER
CE & ISO9001, Intelligent and Efficient
Product advantages
-Maximum opening: 600mm
-Bark crusher function, anti-run deviation function
-Quick hydraulic transfer valve
PRODUCT SPECIFICATION
| Name | Unit | Parameter |
| Find log length | mm | 970mm—1270mm |
| Barking diameter of log | mm | Maximum 600mm-- minimum 80mm |
| Range of peeling thickness | mm | 1.0mm—4.0mm |
| Main engine line running speed | m/min | 60m |
| Main and auxiliary motor power | KW | Double roller of main engine 11KW, single roller of main engine 11KW Feeding hydraulic 4KW, crushing motor 11KW |
| Total motor power | KW | 37kw |
| Reducer model number selection | ZJQ | The main engine adopts 350 hard gear reducer |
| Diameter of chrome plated drum | mm | 150mm、180mm |
| Machine weight | KG | 5000KG |
| Diameter of chrome plated drum | mm | Maximum opening: 600mm;Bark crusher function, anti-run deviation function, add broken skin to transfer to find the circle of falling broken material out to the garbage conveyor belt; Quick hydraulic transfer valve, increase the large knot, curved wood, ellipse, triangle, size of the wood to find round faster. |
