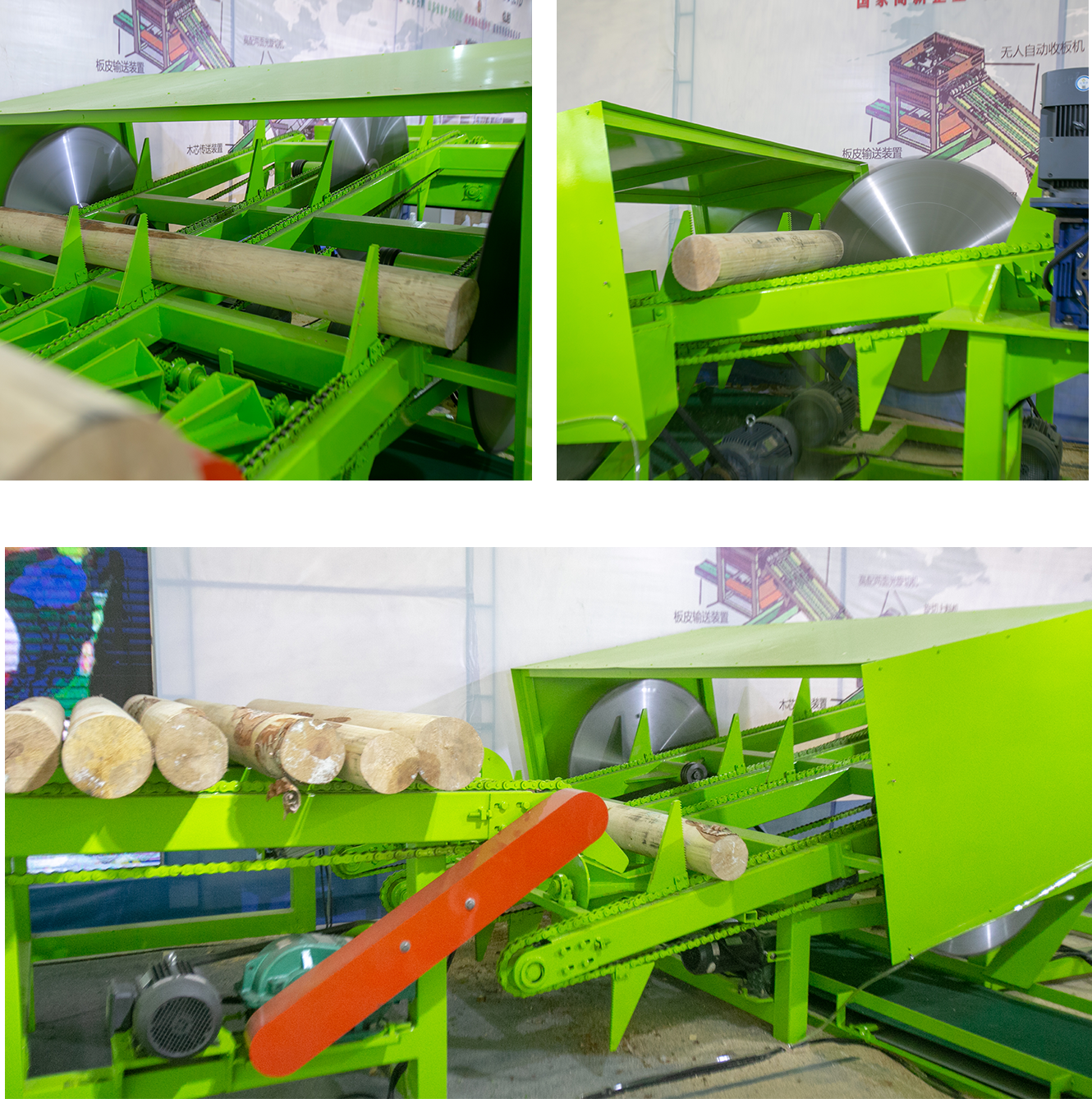

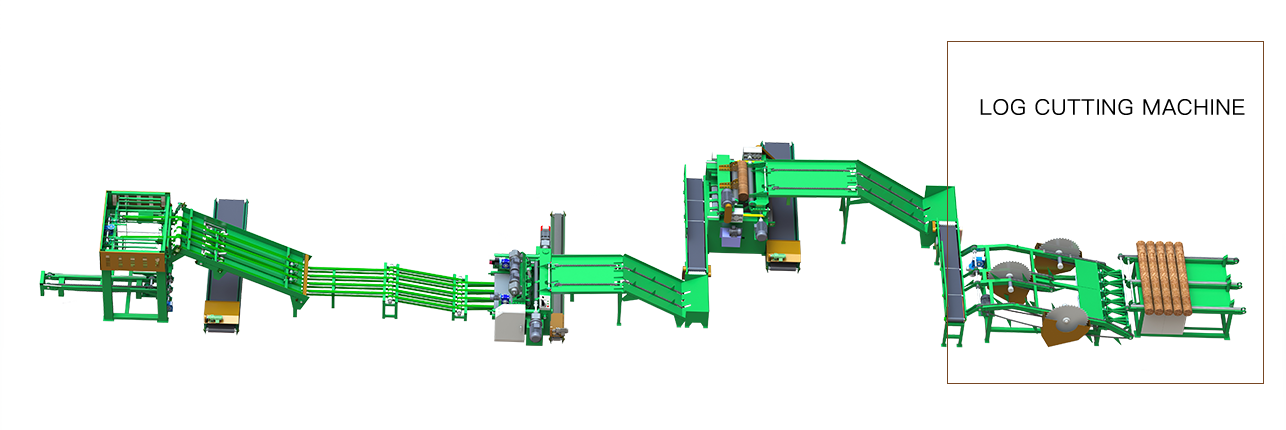

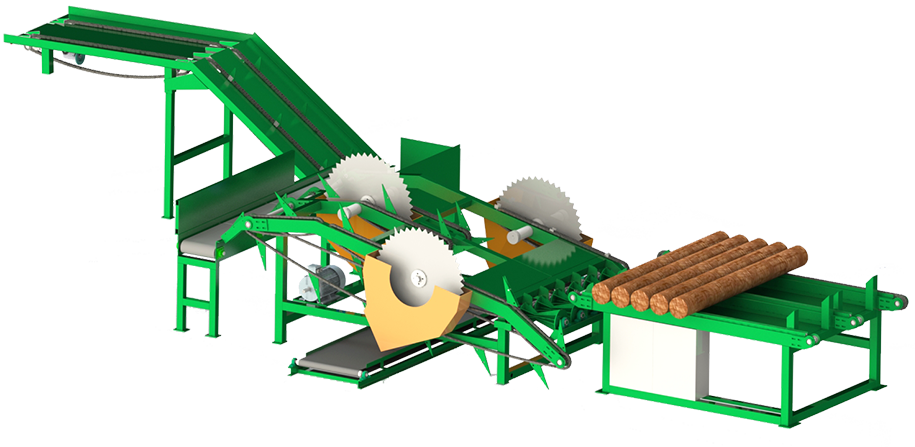

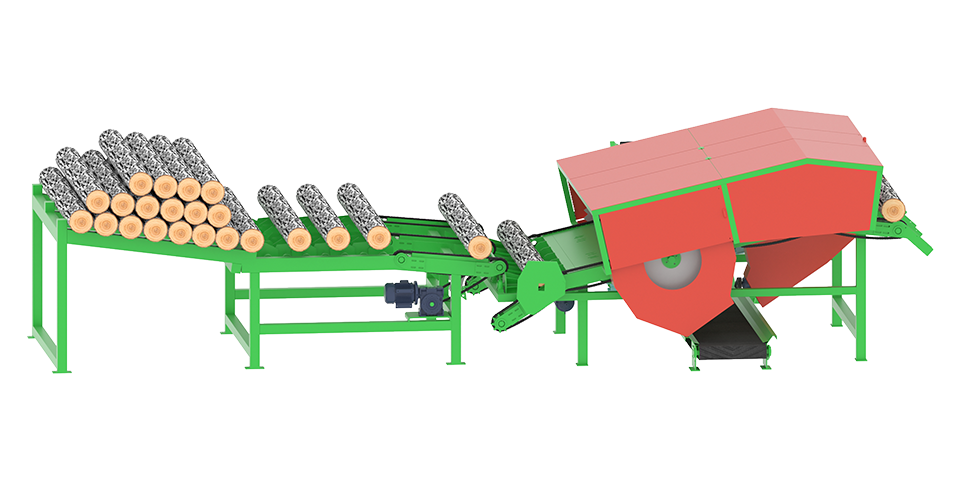

LOG CUTTING MACHINE
CE & ISO9001, Intelligent and Efficient
Product advantages
-With power extended storage frame six side wheel wood division
-Automatic wood turning automatic alignment
PRODUCT SPECIFICATION
| Name | Unit | Parameter |
| Maximum diameter of broken wood | mm | 400mm |
| The length of the log | mm | 2600 mm |
| Reducer for storage frame | The chain transmission adopts ZQ250-48.57 cylindrical gear reducer | |
| Upload reducer | RV130-100 worm gear reducer | |
| The motor power | KW | 4kw+4kw+11kw+11kw+11kw+1.5kw |
| Transmission chain | 20A | |
| Drive chain | 12A-1、12A-2 | |
| High alloy saw blade | mm | Factory equipped with 800mm diameter sawing wood 300mm (saw blade diameter optional) |
| Note | With power extended storage frame, six side wheel wood division, automatic wood turning, automatic alignment, alloy saw blade, saw blade protection cover, whole machine protection cover, including garbage conveyor belt. |
|
